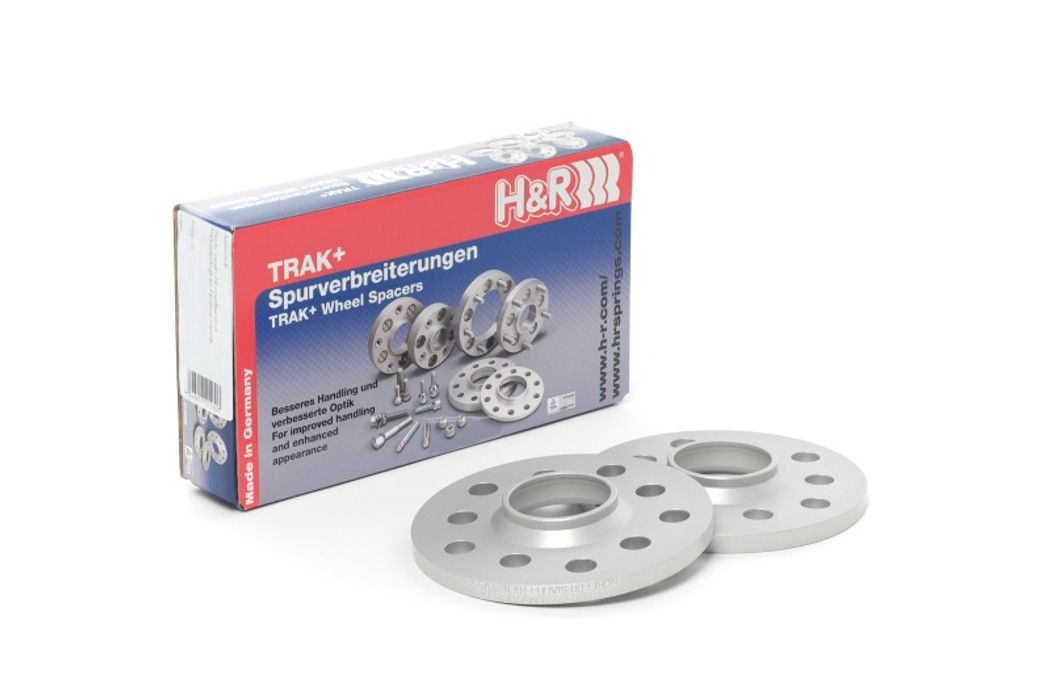

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/108 Center Bore 65 Bolt Thread 12x1.75 - 1035650

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

This Part Fits:

Year	Make	Model	Submodel
1994-1997	Volvo	850	Base
1995-1997	Volvo	850	GLT
1996-1997	Volvo	850	R
1997	Volvo	850	T-5
1995	Volvo	850	T-5R
1994-1996	Volvo	850	Turbo
1998-2004	Volvo	C70	Base
2004-2005	Volvo	S60	2.4
2001-2003	Volvo	S60	2.4T
2004-2009	Volvo	S60	2.5T
2001-2003	Volvo	S60	Base
2001-2009	Volvo	S60	T5
1998	Volvo	S70	T5
2004-2006	Volvo	S80	2.5T
2004-2006	Volvo	S80	2.5T AWD
1999-2004	Volvo	S80	2.9
1999-2005	Volvo	S80	T6
2005	Volvo	S80	T6 Premier
1998-1999	Volvo	V70	AWD
1998-1999	Volvo	V70	Base
1998-1999	Volvo	V70	GLT
1998	Volvo	V70	R
1999	Volvo	V70	R AWD
1998-1999	Volvo	V70	T5
1998-1999	Volvo	V70	X/C AWD
